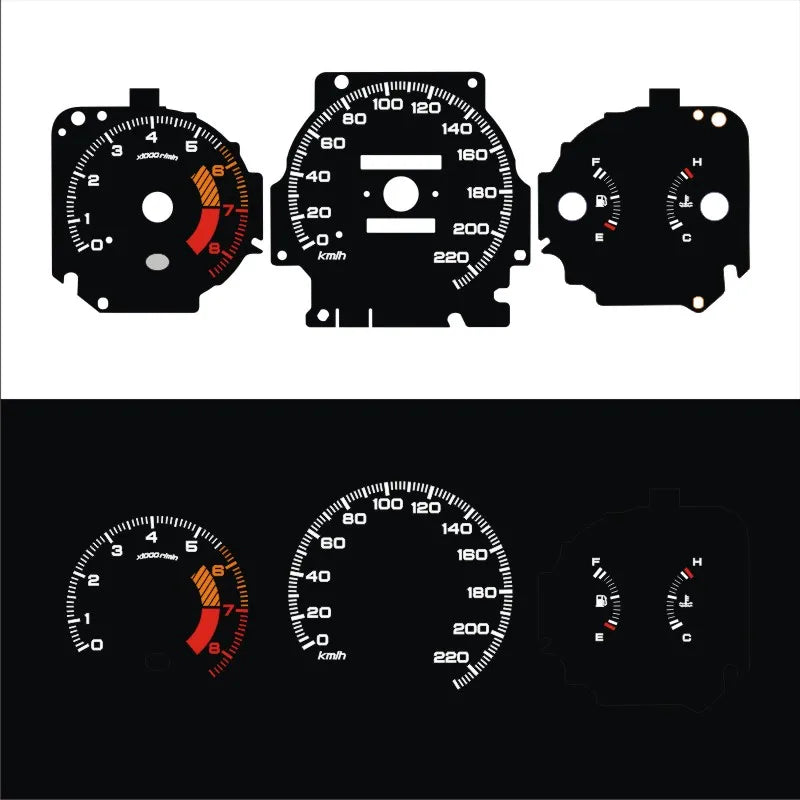

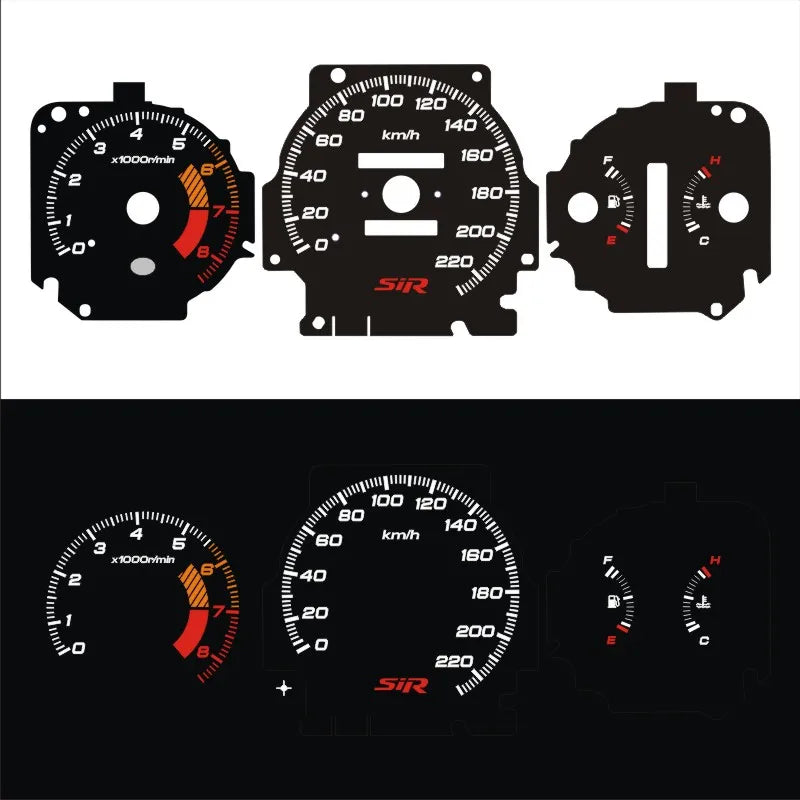

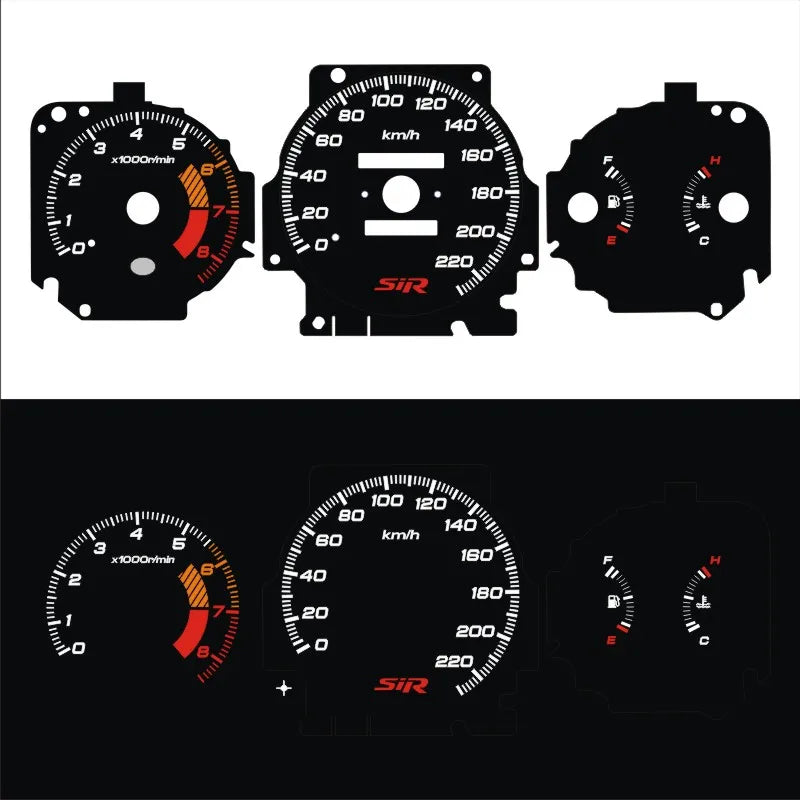

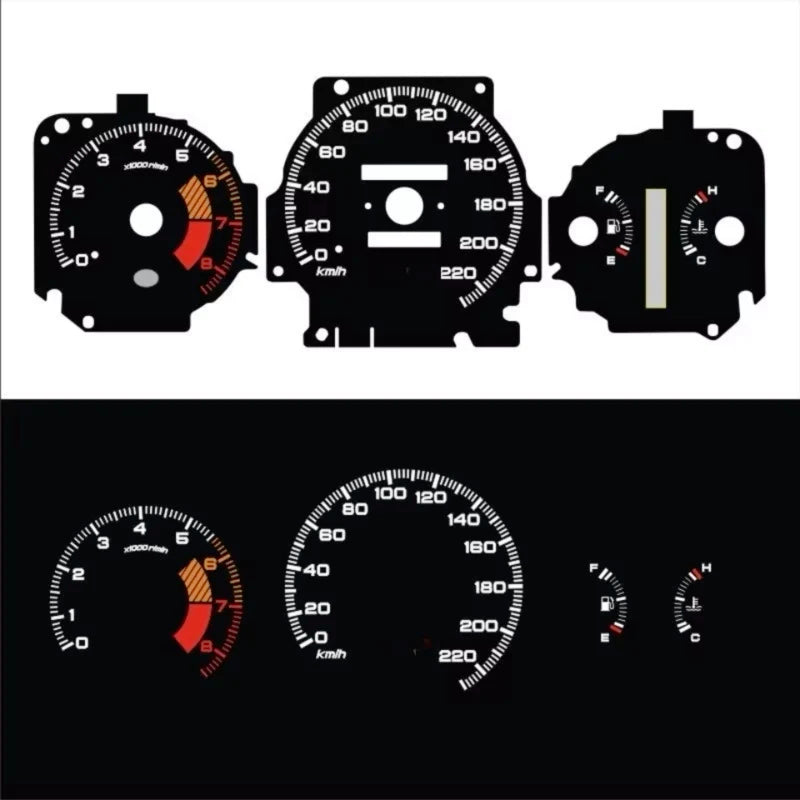

KMH Gauges
KMH Gauges
Regular price
€75,41 EUR
Regular price
€0,00 EUR
Sale price
€75,41 EUR
Taxes included.
Quantity
Couldn't load pickup availability
- Item Height: 5
- Item Length: 22
- Item Weight: 0.238
- Item Width: 16
- Material: EL, PVC
- for Civic 1996~1999 automatic transmission
- for Civic 1996~1999 manual transmission
- We did not punch screw holes for the tachometer and fuel-temp gauges.
- On the back side of the gauge faces, there are marks for reference of screw holes location.
- Brightness adjustable thru the controller on the inverter.
- Anti-glare and scratch resistance surface.
Installation Guide:
- Disconnect the negative terminal on the battery.
- Remove screws that hold the bezel and cluster.
- Disconnect the wire plugs to the cluster.
- Remove the clear cover that protects the needles and the black housing around the gauge.
- If there are screws that hold the faceplate remove them.
- Gently slide the gauge face over the needle. DO NOT REMOVE NEEDLES!!! Careful needles are fragile!
- Locate a spot to run wire in the cluster.
- Screw in the screws to the faceplate, if removed.
- Install back the clear protection cover.
- Plug the connectors of faceplates to inverter.
- Locate the controller to desired place.
- Ground the black wire, and wire red positive to parking light.
- Connect the negative terminal on the battery.
