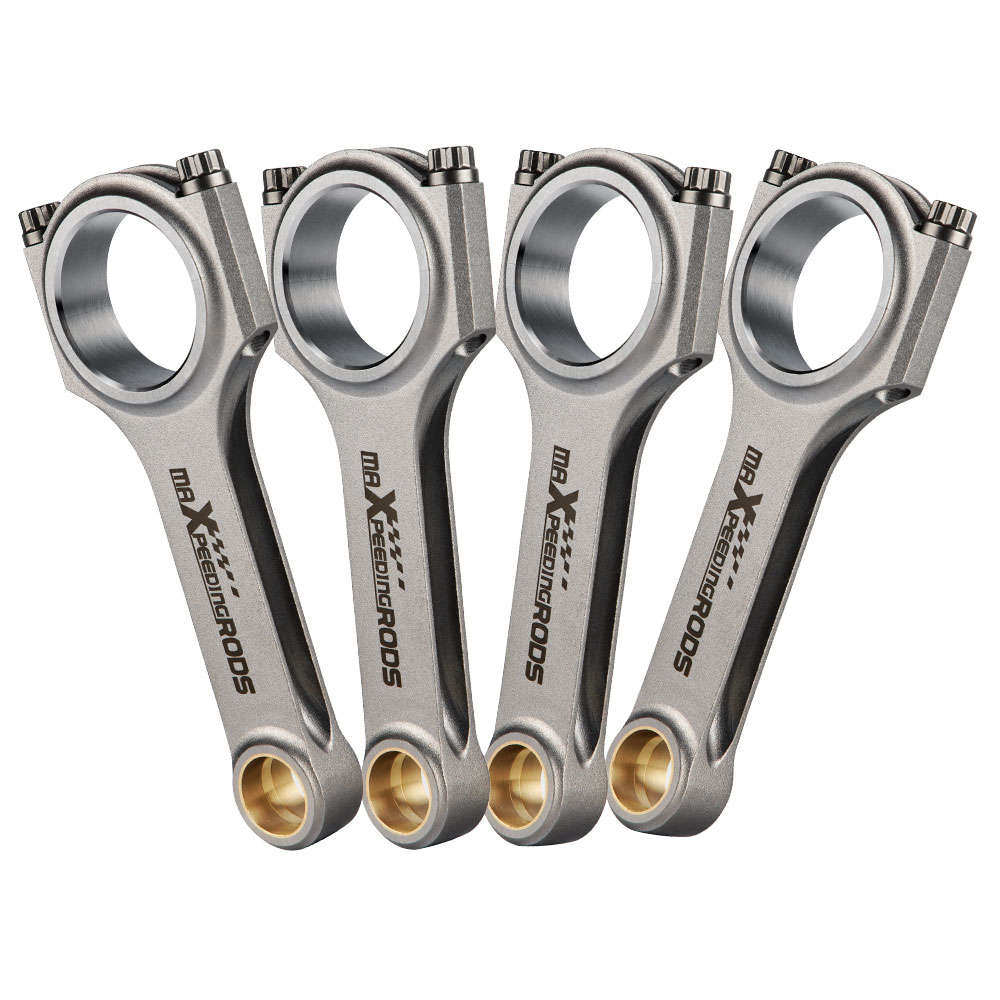

Forged Connecting Rods 5.394"

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light.

Application:

• Acura Integra 1986–89

• Honda Civic Si, CRX Si 1988–1991
• Honda Civic CRX D16 ZC SOHC VTEC D Series
• Honda Civic EX (4dr), Civic Wagon RT4WD 1990-1991
• Honda Civic GTi in New Zealand 1988–1991
• Honda Civic models in Europe (ED4, ED7) 1988–1989
• Honda Civic models in New Zealand (EG4) 1995
• Honda Civic GX 1998–2000
• Honda Civic HX 1996–2000
• Honda Civic EX (sedan Peruvian version) 1996
• Honda Civic VTI 1996–2000
• Honda Civic Si 1992–1995
• Honda Civic EX, EX-V 1992–1995
• Honda Civic ESi (European Market) 1992–1995
• Honda Civic RTSi 1992-1995
• Honda Civic EX Coupé 1996–2000
• Honda Civic Ferio EJ3 1991–1993
• Honda Civic EJ1 1992–1995
• Honda Del Sol Si (US) 1993–1995
• Honda Del Sol ESi (European) 1993–1996
• Honda Del Sol (Si) 1993-1997
• Honda Domani MA4 1992–1995


Specifications:

• Forged SAE 4340 aircraft chrome moly quality steel for racing

• Including Genuine ARP 2000 3/8" bolts
• The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi
• Top acceleration: 9000rpm
•

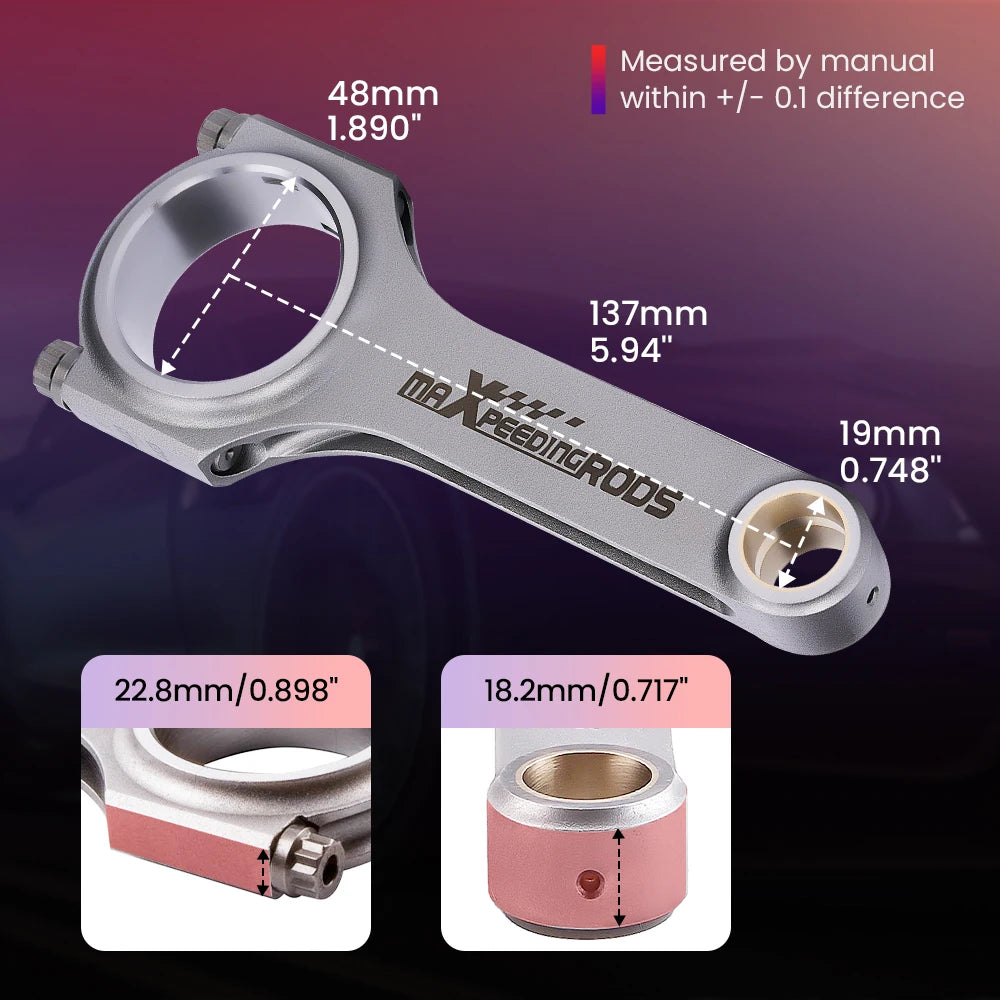

Dimensions:

• Center to center length: 137mm/5.394"
• Big end diameter: 48mm/1.890"
• Small end diameter: 19mm/0.748"
• Big end width: 22.8mm/0.898"
• Small end width: 18.2mm/0.717"
• Bores finished to +/- .01 mm
• Balanced to within +/- 1 g per rod
• Package size: 28CMx21CMx10CM
