Introduction

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.

Application

For Honda Civic CRX D16 ZC SOHC VTEC D Series：
for Acura Integra (USA) 1986–89
for Acura Integra (Australia) 1986–89
for Honda Civic Si, CRX Si 1988–1991
for Civic EX (4dr), Civic Wagon RT4WD 1990-1991
for Civic GTi in New Zealand 1988–1991
for Civic models in Europe (ED4, ED7) 1988–1989
for Civic models in New Zealand (EG4) 1995
for Models in South Africa 1988–1995
for Honda Civic GX 1998–2000
for Honda Civic HX 1996–2000
for Honda Civic EX (sedan Peruvian version) 1996
for Honda Civic VTI 1996–2000
for Honda Civic Si 1992–1995
for Honda Civic EX, EX-V 1992–1995
for Honda Civic ESi (European Market) 1992–1995
for Honda Del Sol Si (US) 1993–1995
for Honda Del Sol ESi (European) 1993–1996
for Honda Civic RTSi 1992-1995
for Honda Civic EX Coupé 1996–2000
for Honda Civic Ferio EJ3 1991–1993
for Honda Civic EJ1 1992–1995
for Honda Domani MA4 1992–1995
for Honda del Sol (Si) 1993-1997
(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture

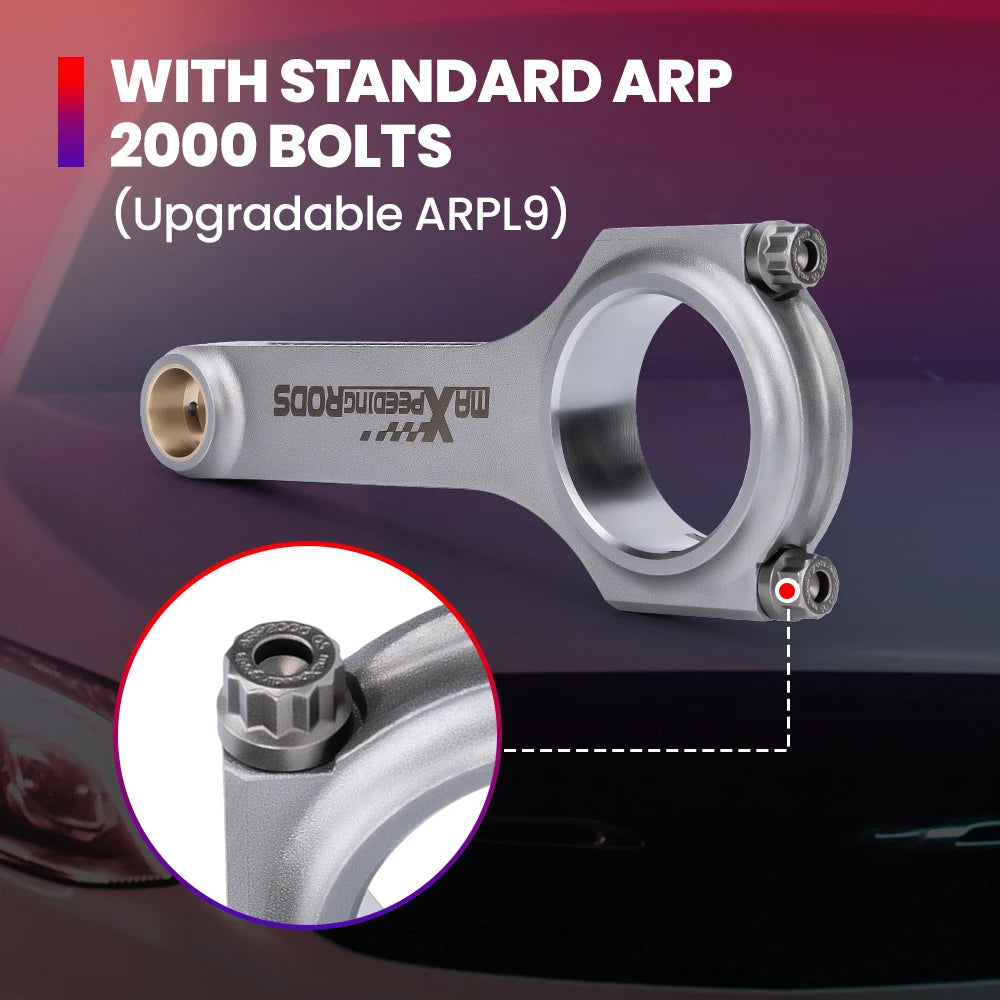

*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

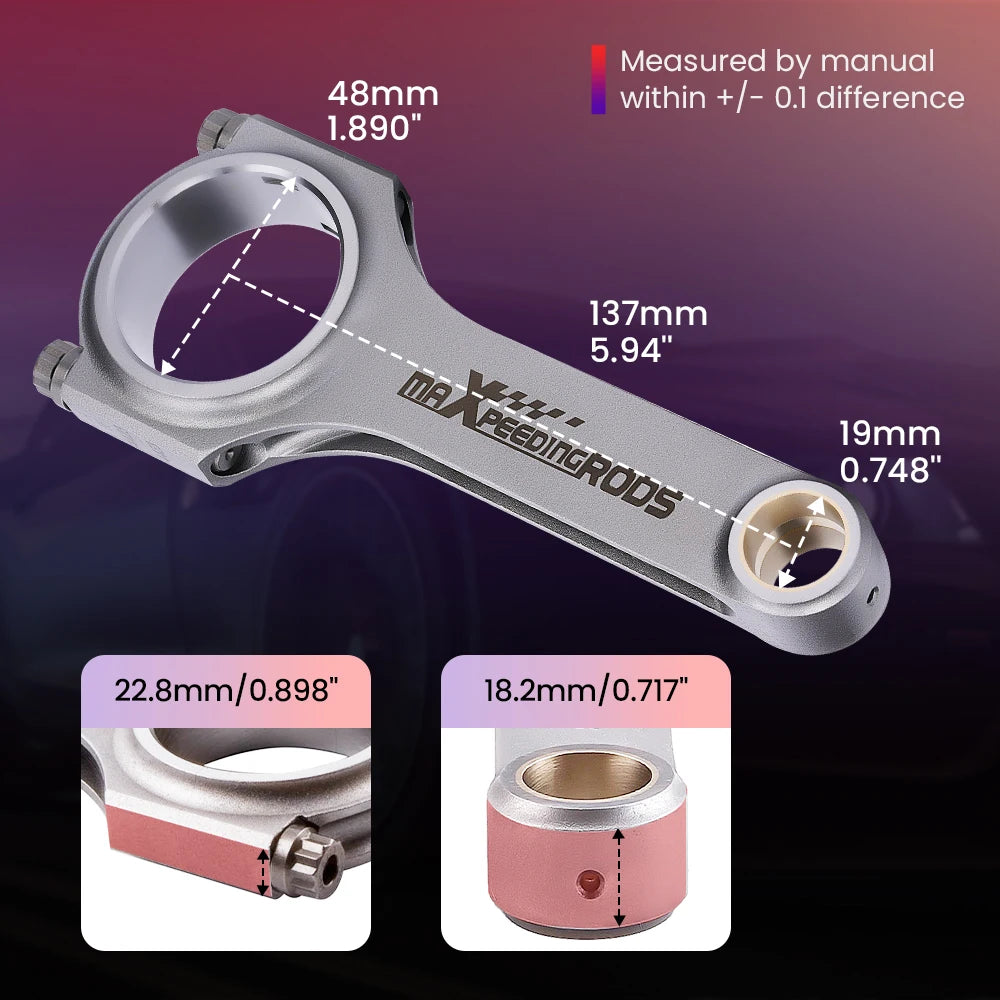

Dimension

Center to center length: 137mm/5.394"
Big end diameter: 48mm/1.890"
Small end diameter: 19mm/0.748"
Big end width: 22.8mm/0.898"
Small end width: 18.2mm/0.717"

Feature

1. TüV Certification Con Rods；

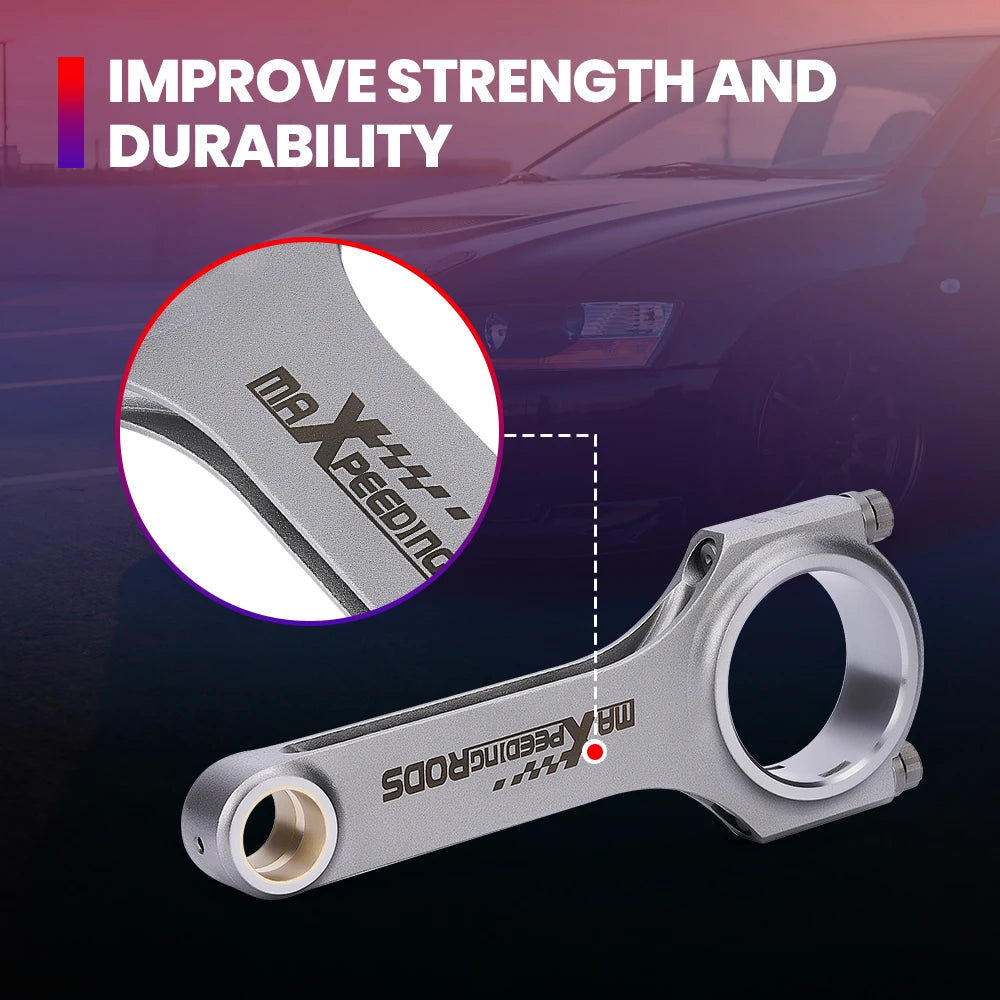

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

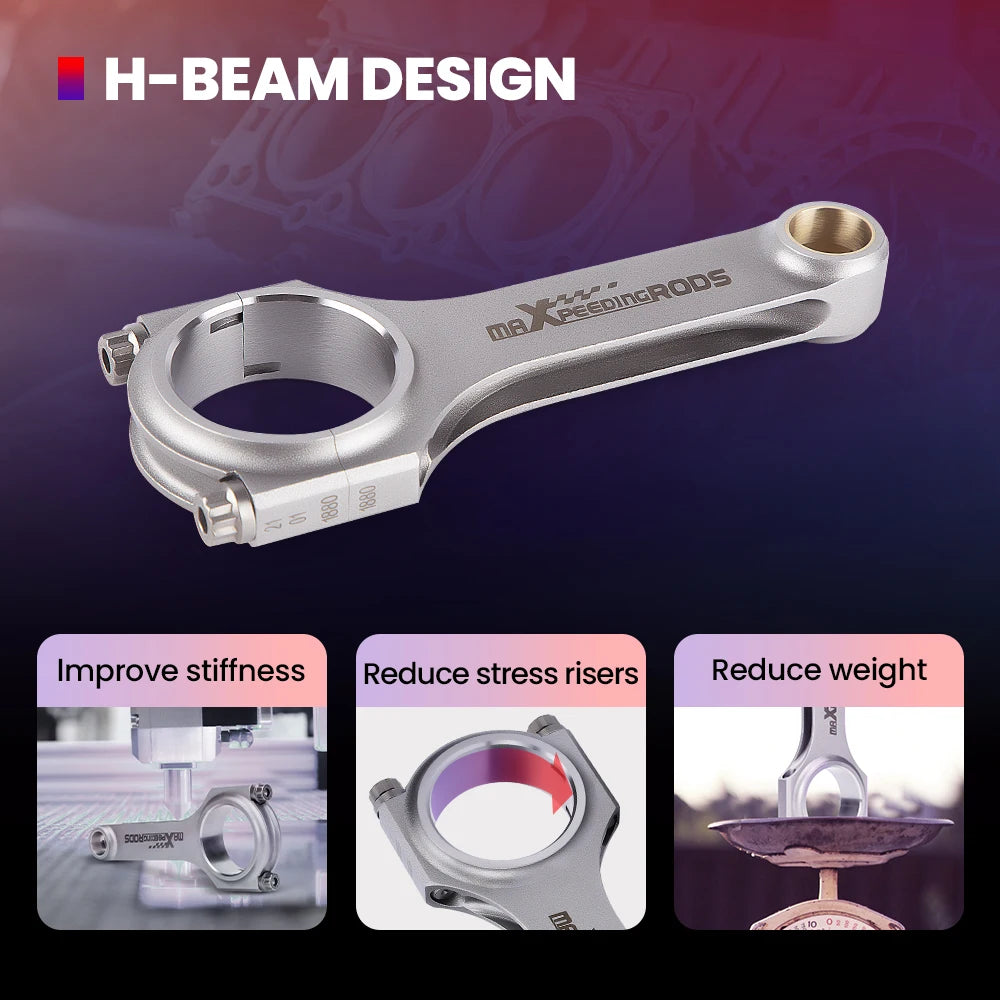

4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6 CNC machined,Precision rod cap alignment dowels；

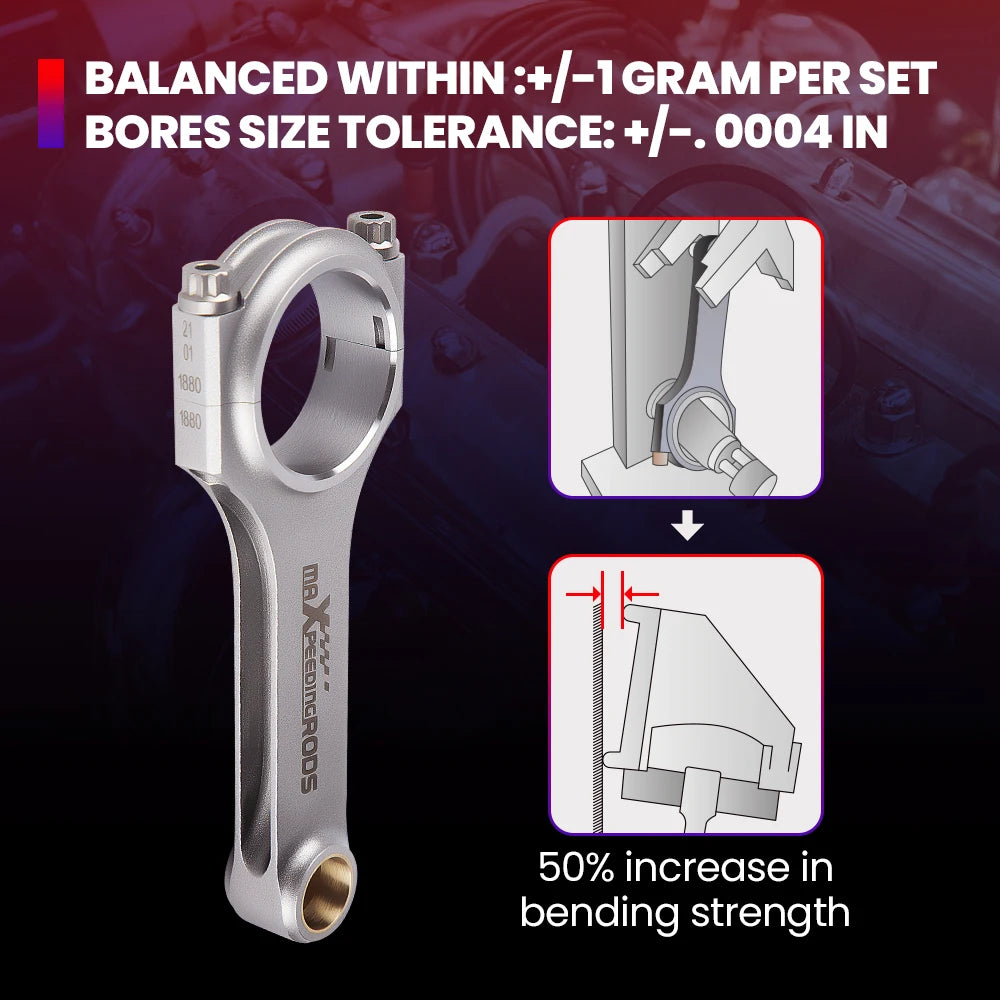

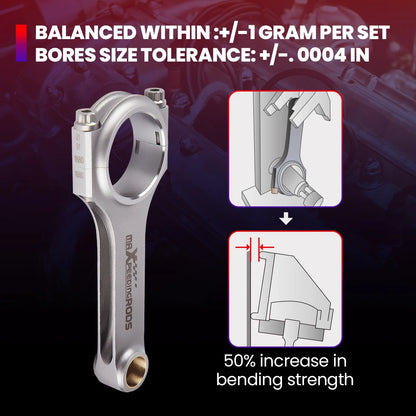

7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10 X-rayed, sonic tested；
11.Custom Service.

Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
